Mini 1g DSM2/X Receiver

Description

Tony Ray’s Aero Models Mini 1g DSM2/X Receiver

Compatible for all Tony Ray Aero Models

Features:

• Compatible with DSM2/DSMX transmitter.
• Built-in 2A brushed ESC,supported external brushless ESC, no need to program.
• The receiver signal can stay stable with a voltage as low as 2.5V.
• Improve signal interruption problem when micro receiver using a conventional 1S brushless motor.

Specifications:

• Channel: 4
• Input Voltage: 3V – 5.5V
• Weight: 1.4g
• Dimension: 21.3×11.9×5.8mm
• Connector Size: JST 1.0mm
• Socket Size: 1.25mm 2P

Recommended parts/equipment for this receiver (Not included. Please click on links for parts available in the FlyBoyz Store.):

• 1.7g Micro Servo

• Battery: 1S 3.7V 100mAh to 200 mAh LiPo Battery with 1.25mm 2P Plug

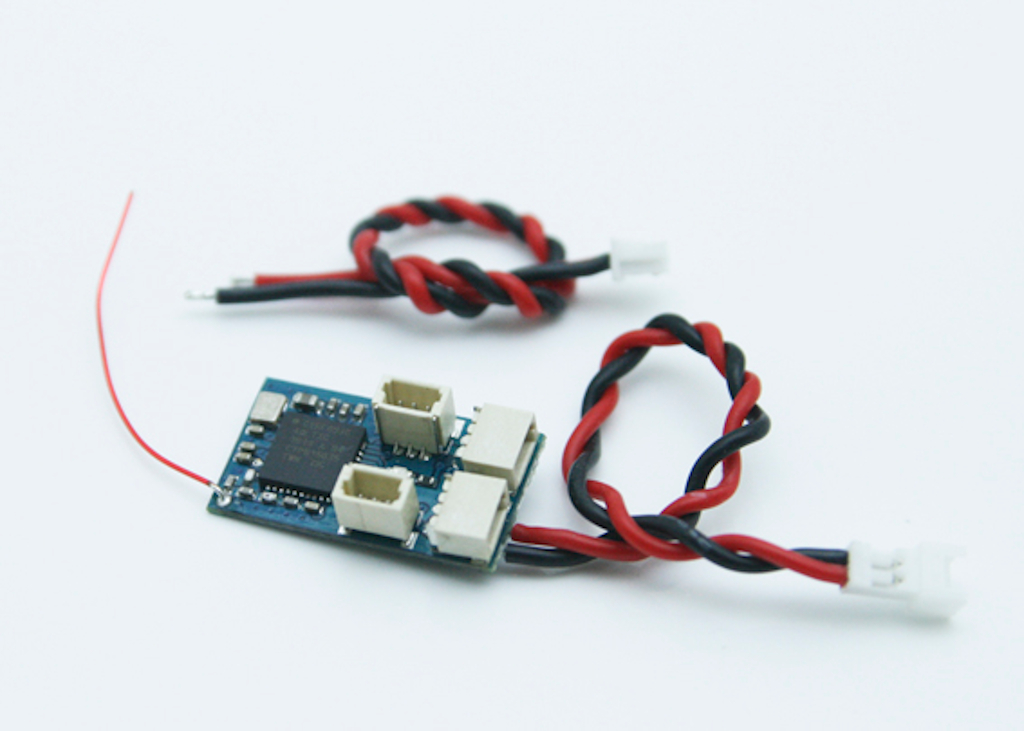

• Note: Connectors not included. The product photo shows what the receiver looks like with connectors attached. Since customers may use different radio/receiver/battery electronics, connectors are not supplied since they may not fit all applications.

Suitable for:

• Fokker E.III Eindecker (min. 2 servos)
• Etrich Dove (Taube) (min. 4 servos)
• Blériot XI (min. 2 servos)
• Sopwith Camel (min. 2 servos)
• Mitsubishi A6M2 Zero (min. 3 servos)
• P-51D Mustang (min. 4 servos)
• Avro 504k (min. 2 servos)

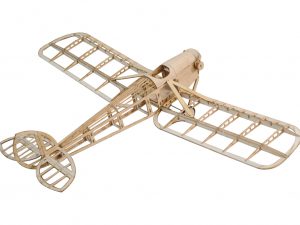

• DH.53 Humming Bird (min. 2 servos)
• Fokker Dr.1 (min. 3 servos)
• RAF SE5a (min. 3 servos)
• P-26A Peashooter (min. 2 servos)
